Des-Case Desiccant Breathers: How Silica Gel Moisture Control Saves Your Equipment from Invisible Destruction

Your oil looks clean. Your filters are new. Your maintenance schedule is perfect. But there’s a silent killer entering your system with every breath your reservoir takes—water vapor that’s destroying bearings, degrading lubricant, and accelerating wear you won’t see until it’s too late.

Every time your hydraulic system cycles, every temperature fluctuation in your gearbox, every change in atmospheric pressure causes your reservoir to “breathe.” Air moves in and out. And with that air comes moisture—invisible water vapor that condenses inside your equipment and begins its destructive work.

Moisture contamination is responsible for up to 70% of hydraulic system failures. It promotes rust and corrosion. It degrades lubricant additives. It creates acid byproducts that attack seals and metal surfaces. And standard vent caps do absolutely nothing to stop it.

Why Desiccant Breathers Are Your First Line of Defense

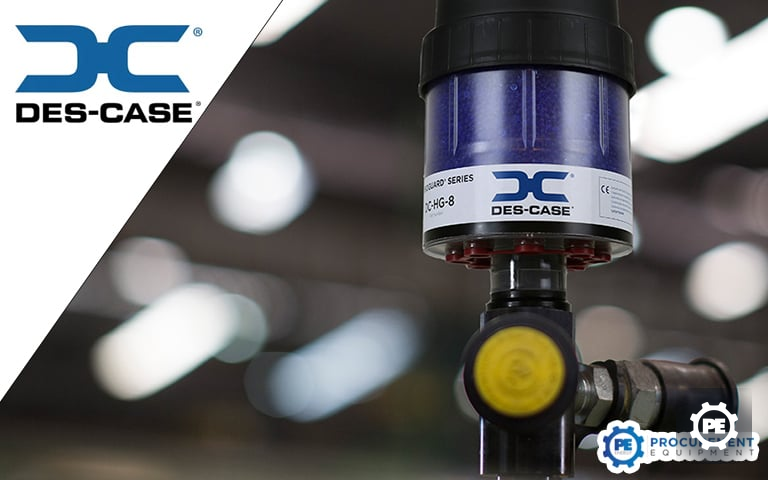

Des-Case desiccant breathers replace passive vent caps with active moisture control. As air enters your reservoir, it passes through silica gel desiccant that strips moisture from the air before it ever reaches your lubricant. The same air that would have deposited condensation inside your equipment instead enters bone-dry.

But moisture removal is only half the equation. Incoming air also carries particulate contamination—dust, dirt, and debris that act as abrasives in your system. Des-Case Standard Series breathers filter incoming air to 3 microns absolute, ensuring both moisture and particles are stopped at the door.

Blue Silica Gel vs. Orange Silica Gel: Choosing Your Desiccant Breather

Des-Case offers two silica gel options, each with distinct visual indication characteristics:

Silica Gel Moisture Control: Technical Specifications

Both blue and orange silica gel breathers share identical physical construction and filtration performance. The choice between them is primarily environmental/regulatory. For detailed specifications on individual models, see the Des-Case DC-4 Desiccant Breather (largest standard model) or DC-3 Desiccant Breather product pages.

Performance Specifications (All Models)

• Temperature Range: -20°F to 200°F (-29°C to 93°C)
• Filter Efficiency: 3 μm absolute
• Chemical Compatibility: All mineral oils, most synthetic oils, diesel fuels
• Compliance: REACH compliant

Desiccant Breather Sizing by Application

Proper sizing ensures adequate moisture protection without excessive restriction. The Standard Series offers five sizes to match your reservoir capacity:

Sizing Factors Beyond Reservoir Volume

Reservoir size provides a starting point, but proper desiccant breather sizing also considers:

• Ambient humidity levels — High-humidity environments consume desiccant faster
• Breathing frequency — Systems with rapid cycling require larger breathers
• Temperature swings — Greater temperature variation increases moisture ingress
• Airflow requirements — High flow rates may require larger models to avoid restriction

Desiccant Breather Applications Across Industries

Comparing Desiccant Breather Options

While Des-Case is the industry standard, PE Energy also stocks Air Sentry Desiccant Breathers from Whitmore for applications requiring alternative specifications. The Air Sentry G12S1N offers comparable protection with different mounting options.

Installation and Replacement: Getting Maximum Moisture Control

Des-Case Standard Series breathers feature Multi-Fit male threads that are compatible with multiple thread standards:

When to Replace Your Desiccant Breather

Monitor the color change indicator to determine replacement timing:

• Blue silica: Replace when gel turns pink (indicates saturation)
• Orange silica: Replace when gel turns white
• Time-based: Replace after 12-18 months regardless of color if not using vacuum indicator
• Filter saturation: Replace if vacuum indicator shows red (particle clogging)

Blue Silica Desiccant Breathers (DC-Series)

Orange Silica Desiccant Breathers (DC-W Series)

Standard Series Breathers

Product Overview

Performance Specifications

Application Sizing Recommendations

² NOTE: This is intended as a general guideline for sizing only; other considerations, such as: humidity level, frequency of air flow, ambient temperatures, and chemical compatibility are very important in sizing a breather properly. Larger applications and special circumstances typically require the most thorough analysis. Please contact Des-Case for assistance in sizing a breather.

Dimensions

Thread Sizes
